Track Boltsare for excavator, bulldozer, crawler these kinds of heavy duty mining equipment.

Whenanexcavator tear through granite or a bulldozer push a mountain of overburden,many people arefocus on the blade, the bucket, the engineor other undercarriage parts. But as manufacturers who have spent decades in the undercarriagefield, we look at the jointpart.Specifically, we look at the track bolt.

For the uninitiated, a track bolt is just a “big screw.” For the operator or fleet manager who has faced a thrown track or a sheared bolt head in a remote job site, it is a critical safety and productivity component.

In the world of heavy machinery (Caterpillar, Komatsu, Hitachi, Liebherr...), the track bolt is the unsung hero. It is the high-tension fastener that connects the track shoe totrackchain link, or the master pin to the track link. If this component fails, your $500,000 machine becomes a very expensive, stationary sculpture.

This article strips back the layers of hardened steel to explain what a track bolt is, the brutal physics it endures, and why you cannot treat it like a standard hardware store fastener.

WhatTrack Boltis?

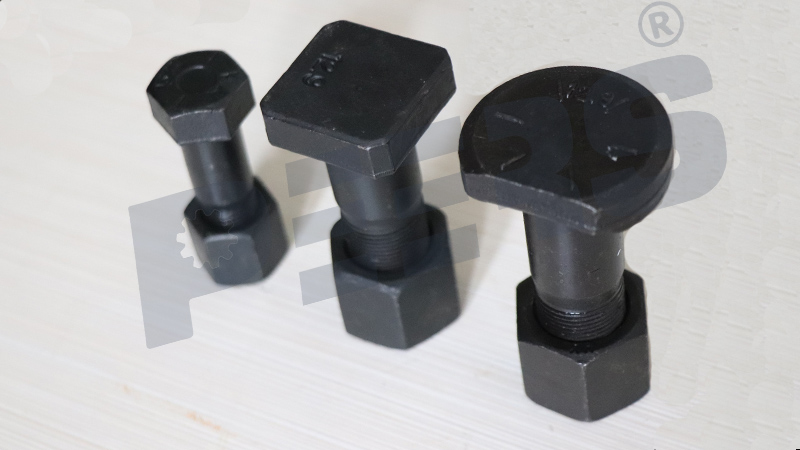

Atrack bolt is a specialized high-strength fastener designed to resist three things that destroy normal bolts: shock load, severe vibration, and cyclic shear stress.

In most undercarriage configurations, the bolt passes through the track shoe and threads directly into the bushing or link of the track chain.

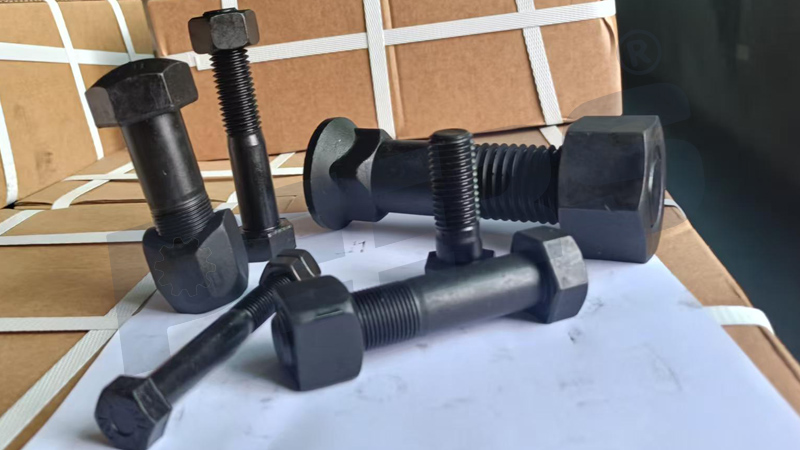

The Shoe Bolt (Shoe-to-Link): This is the most common. It holds the individual track pad (steel or rubber) onto the track link. It must withstand the direct impact of rocks and ground abrasion.

What These Bolts Endure?

1. Extreme Shear Forces

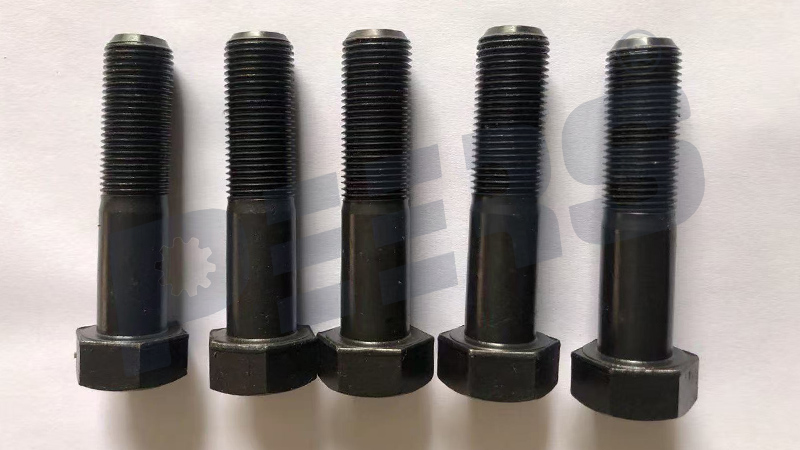

When a bulldozer turns in hard ground, the track shoes are dragged sideways. The bolt shank must absorb immense lateral shear forces. Standard bolts will snap like glass under this pressure. A true track bolthasshoulderedand without shoulder type—meaning the unthreaded shank is precision-ground to carry the shear load, not the threads.

2. Loosening via Vibration

Abulldozer track is a continuous series of explosions. Every time a track link contacts thesegmentsor rollers, a shockwave travels through every bolt. This high-frequency vibration acts like an impact wrench, slowly unscrewing standard hardware. Track bolts require specific prevailing torque thread locking features or hardened washers to fight this.

3. Galvanic and Abrasive Corrosion

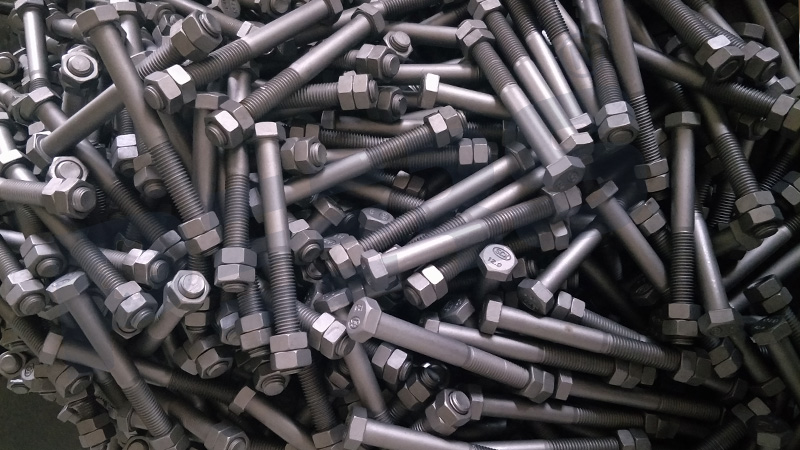

Mud, water, urea, and salt are trapped between the shoe and the link.So they can be easilygalvanic corrosion. If you cannot remove the bolt during service, your maintenance cost doubles. track boltsareusinganti-corrosion coatings (like Geomet or Dacromet) that survive the abrasion.

How a Track Bolt is Different?

As a manufacturer, we do not simply “cut threads” on a rod. The metallurgy

and heat treatment define the bolt.

Grade: The Minimum Standard is 10.9 or higher

You will never find a Grade 5 or 8.8 bolt in a professional undercarriage.The minimum standard for a track bolt isgrade10.9 (Metric) or Grade 8(Inch). However, for high-impact applications likemore than 50 tonsexcavatorsand above D9 bulldozer,many customersusegrade12.9 alloy steel.

The Core Material: Alloy Steel

We use medium-carbon alloy steels (typically 42CrMo4 or 35CrMo). These include Chromium and Molybdenum (Chromoly). Chromium adds hardness and wear resistance; Molybdenum maintains the bolt’s toughness (resistance to cracking) even at high temperatures generated by friction.

The Heat Treatment: The "Killing" Process

The bolt is quenched and tempered.We heat the bolt to 850°C (1562°F), then rapidly cool it in oil, by a precise tempering cycle. This creates a microstructure called“Tempered Martensite”. This structure is hard enough to resist thread stripping but tough enough to bend slightly before breaking. A brittle track bolt is a dangerous track bolt.

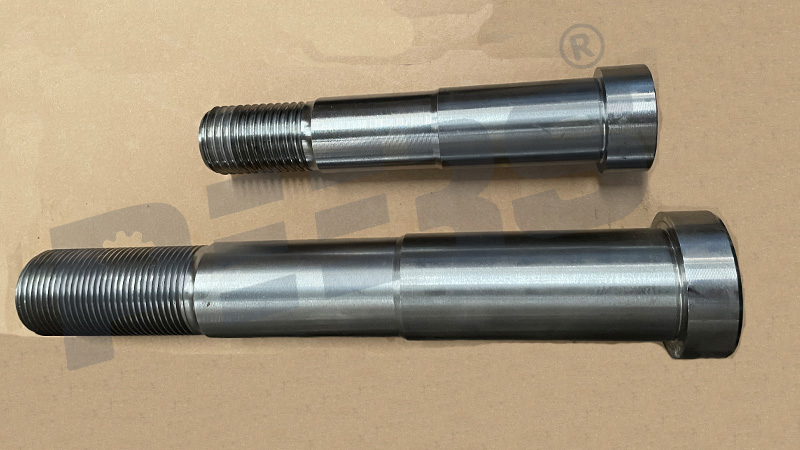

Precision Shoulder Fit

The worst enemy of a track bolt is"play." If the shank (the smooth part under the head) is 0.5mm smaller than the hole in the shoe, the bolt will move. That movement causes work hardening and eventual fracture. Our manufacturing tolerance for the shoulder diameter is held to h7 standard (microns), ensuring an interference fit that locks the shoe to the link.

The Rubber Track Revolution

A note for compact excavators and Compact Track Loaders: Rubber tracks have changed the track bolt market.

Rubber tracks require a "carriage bolt" style track bolt with a shallow, countersunk head. Why? The bolt head sits flush with the rubber surface. If it protrudes, it rips the rubber.

These bolts face a unique failure:“head shearing”.If the operator spins the machine aggressively, the lateral torque can snap the flat head right off the shank. For this reason, rubber track bolts are often forged, not machined, to maintain grain flow around the head radius.

Why Torque Wrenches save Millions?

As a manufacturer, we can produce the perfect bolt. But if you use an impact gun blindly, you will destroy it.

Track bolts areTorque-to-Yield fasteners in many applications. You are stretching the bolt slightly to create clamp load. However, there is a fine line.

1. Under-torquing: The bolt is loose. Vibration kills it in 10 hours.

2.Over-torquing: You stretch the bolt past its elastic limit.

How to Choose the Right Track Bolt Supplier?

When buying aftermarket track bolts, do not look for the cheapest price. Look for the stampon the headand and heat treatment type.

A legitimate track bolt head will be stamped withgrade (10.9 / 12.9)with heat treatment also.

Our Recommendation for Fleet Managers:

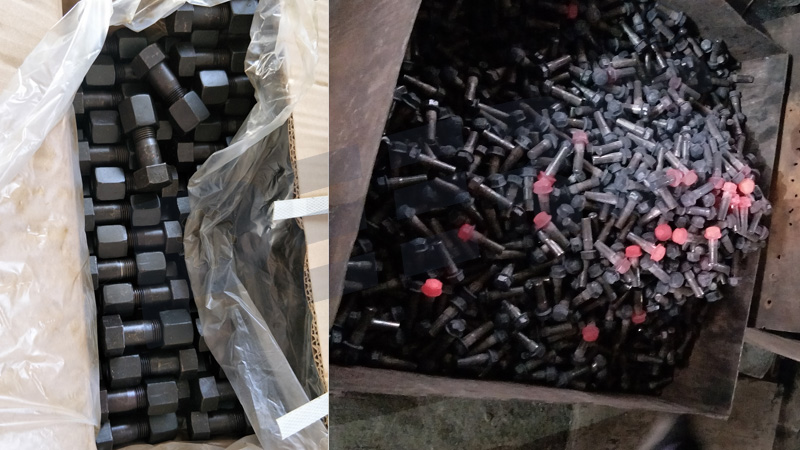

Buy track bolts in "Service Kits."A proper kit includes the correct number of bolts, hardened washers (if required), and a small tube of anti-seize compound for the threads.Replace alltrackbolts when replacing shoes. Mixing old, stretched bolts with new bolts creates uneven load distribution.

For your excavators and bulldozers, investing in OEM-quality or premium aftermarket track bolts is not a maintenance expense—it is an insurance policy against catastrophic downtime. A thrown track costs you the part, the crane rental, the tow truck, and three hours of labor.A qualitytrackbolt costs youonlypennies per hour of operation.

Pleaseremember The only thing between thatdozer or excavatorand disaster is a few inches of precision-engineered, heat-treated steel. Choose your track bolts as carefully as you choose your machine.

Looking for heavy-duty track bolts for your fleet?Quanhzhou Peers Construction Machinery Parts Co., Ltd.stocks Grade 10.9 and 12.9 bolts for all major excavator and bulldozer models (Cat, Komatsu, Deere, Hitachi...). Contact our engineering support for torque specs and corrosion-resistant coatings
