Many operators replace parts too early or too late. Use these three rules to understand what your undercarriage is telling you.

1. Pitch = Health

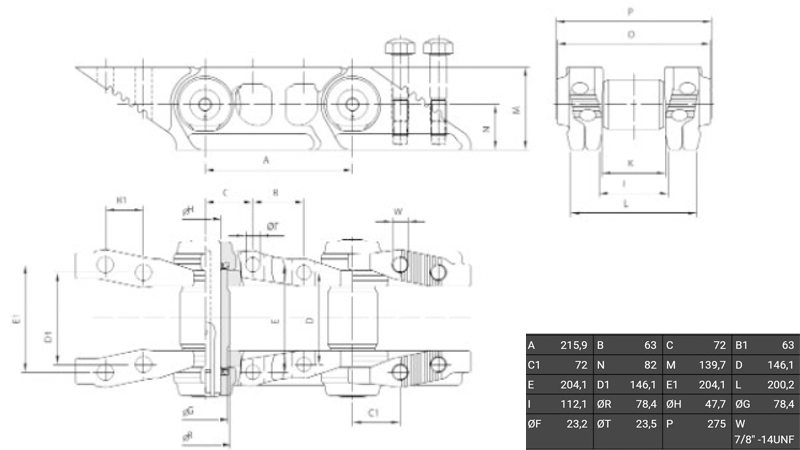

   The distance between two adjacent pins is called “pitch”. A new chain has accurate pitch. As links, pins, and bushings wear, pitch increases. When pitch exceeds spec by 3–5%, the chain will skip on the sprocket. Measure pitch regularly—don’t just eyeball track sag.

2. Wear patterns tell the story

   - Link face wear (top surface): caused by track rollers. If concave, your links are thinning.

   - Bushing outside wear: sprocket contact area. Oval-shaped bushings mean it’s time for turning (if reversible) or replacement.

   - Pin & bushing internal wear: this creates “chain stretch.” You cannot see it directly, but increasing track sag without visible roller wear is a clue.

3. Never mix old and new

   If you replace only one damaged link on a worn chain, the new link’s shorter pitch will fight against the old chain’s longer pitch. Result: vibration, sprocket damage, and sudden breakage. Always replace full chains in pairs (left and right).

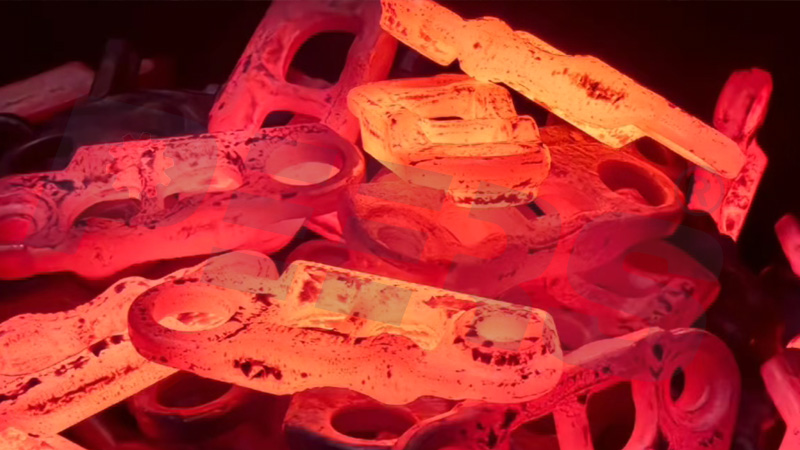

we use high-carbon alloy steel (e.g., 35MnB). Each link is drop-forged, heat-treated, tempering and quenching with HRC 48–52 on the surface, and precision-machined to ±0.1 mm. Cheap links skip heat treatment, tempering and quenching or use low-grade steel—they look similar but wear three times faster.

Maintenance comprehension checklist

- Daily: Remove packed mud (traps abrasives).

- Weekly: Measure track sag. Adjust tension to manufacturer spec.

- Every 500 hours: Inspect link faces and bushings for asymmetry.

- Replacement rule: When internal pin/bushing wear reaches 3% of original pitch, change the complete track chain.

A track link is simple: one piece of steel. But “comprehending” the track chain means understanding pitch, wear patterns, and the danger of mixing old with new. That knowledge saves you from unexpected breakdowns and doubles undercarriage life. Now you don’t just know what a track link is—you understand how to use that knowledge on the job.
