Pins and Bushings Position Diagram

The pins, bushes and links section for a Excavator and Digger. you might come across the term 'position', by a number, for example 'position 3 pin' or 'position 10 bush'. These numbers are related to the location where the pin or bush is fitted on the machine.

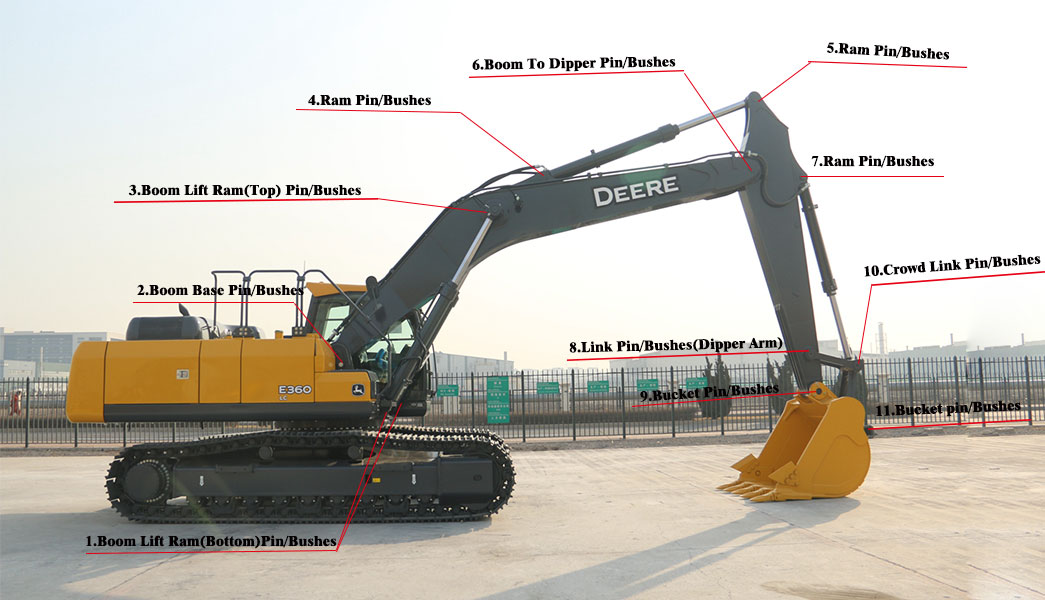

While there are people that know the names and numbers of each of the locations very well in the industry, the majority of people are very unlikely to know all the locations off the top of their heads. We put  a pin and bush location diagram, with each of the names and numbers labelled very clearly. This can be seen from this diagram.

If you would like a printed version of this, diagram,  please contact us by mail: info@peerspartys.com.we will get one posted to you as soon as possible!
